UPFIT APPLICATIONS

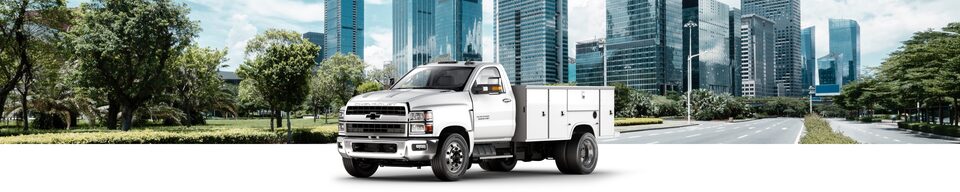

UTILITY/SERVICE

GM Envolve makes it easy to give your workers a well-organized vehicle to work from with versatile storage space. Our trucks and vans are designed to make the upfit* process simple and straightforward, allowing you to create the right vehicle for any need.

COMPATIBLE MODELS

- Chevrolet Express 3500 Cutaway/GMC Savana 3500 Cutaway



- Chevrolet Express 4500 Cutaway/GMC Savana 4500 Cutaway



- Chevrolet Silverado 1500/GMC Sierra 1500



- Chevrolet Silverado 2500 HD/GMC Sierra 2500 HD



- Chevrolet Silverado 3500 HD/GMC Sierra 3500 HD



- Chevrolet Silverado 3500 HD Chassis Cab/GMC Sierra 3500 HD Chassis Cab



- Chevrolet Silverado 4500 HD Chassis Cab



- Chevrolet Silverado 5500 HD Chassis Cab



- Chevrolet Silverado 6500 HD Chassis Cab



- Chevrolet Low Cab Forward

UTILITY/SERVICE VAN UPFIT OPTIONS

GM Envolve vans give you heavy-duty capability with Gross Vehicle Weight Ratings* of up to 14,200 lbs. and available options like our Vortec® 6.0L V8 engine and an isolated second battery with rundown protection. Plus, the confidence of our standard StabiliTrak® electronic stability control and traction control systems as well as 4-wheel antilock disc brakes.

APPLICATION CHARTS

CHEVROLET EXPRESS 3500 CUTAWAY/GMC SAVANA 3500 CUTAWAY

CUTAWAY

2WD SRW/DRW

WB/Cab to Axle

139 in./80 in.



Cab to end of frame

12.4 ft.



Front Maximum GAWR*

4,300 lbs.



Maximum GVWR*

12,300 lbs.



Maximum Payload*

7,180 lbs.

2WD SRW/DRW

WB/Cab to Axle

159 in./100 in.



Cab to end of frame

14 ft.



Front Maximum GAWR*

4,300 lbs.



Maximum GVWR*

12,300 lbs.



Maximum Payload*

7,140 lbs.

2WD SRW/DRW

WB/Cab to Axle

177 in./118 in.



Cab to end of frame

15.5 ft.



Front Maximum GAWR*

4,300 lbs.



Maximum GVWR*

12,300 lbs.



Maximum Payload*

7,080 lbs.

CHEVROLET EXPRESS 4500 CUTAWAY/GMC SAVANA 4500 CUTAWAY

CUTAWAY

2WD DRW

WB/Cab to Axle



159 in./100 in.



Cab to end of frame



14 ft.



Front Maximum GAWR*



4,600 lbs.



Maximum GVWR*



14,200 lbs.



Maximum Payload*



8,940 lbs.

2WD DRW

WB/Cab to Axle



177 in./118 in.



Cab to end of frame



15.5 ft.



Front Maximum GAWR*



4,600 lbs.



Maximum GVWR*



14,200 lbs.



Maximum Payload*



8,860 lbs.

UTILITY/SERVICE TRUCK PACKAGES

GM Envolve trucks give you the reliability of Chevrolet and GMC with the versatility you need to create the right upfit. We offer a variety of Gross Vehicle Weight Ratings*, powertrains and wheelbases to match your application perfectly.

APPLICATION CHARTS

CHEVROLET SILVERADO 1500/GMC SIERRA 1500 AVAILABLE W/BOX DELETE

REGULAR CAB

2WD/4WD SRW

WB/Cab to Axle



136.9 in./55.2 in.



Body Length



8 ft.



Front Maximum GAWR*



3,800 lbs.



Maximum GVWR*



6,900 lbs.



Maximum Payload*



2,500 lbs.

CHEVROLET SILVERADO 2500 HD/GMC SIERRA 2500 HD AVAILABLE W/BOX DELETE

REGULAR CAB

2WD/4WD SRW

WB/Cab to Axle



141.6 in./55.2 in.



Body Length



8 ft.



Front Maximum GAWR*



6,000 lbs.



Maximum GVWR*



11,025 lbs.



Maximum Payload*



4,454 lbs.

DOUBLE CAB

2WD/4WD SRW

WB/Cab to Axle

162.5 in./55.2 in.



Body Length

8 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

11,450 lbs.



Maximum Payload*

4,330 lbs.

CREW CAB

2WD/4WD SRW

WB/Cab to Axle

172 in./55.2 in.



Body Length

8 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

11,550 lbs.



Maximum Payload*

4,337 lbs.

CHEVROLET SILVERADO 3500 HD/GMC SIERRA 3500 HD AVAILABLE W/BOX DELETE

REGULAR CAB

2WD/4WD SRW

WB/Cab to Axle

141.6 in./55.2 in.



Body Length

8 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

8,059 lbs.

DOUBLE CAB

2WD/4WD SRW

WB/Cab to Axle

162.5 in./55.2 in.



Body Length

8 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

7,601 lbs.

CREW CAB

2WD/4WD SRW

WB/Cab to Axle

172 in./55.2 in.



Body Length

8 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

7,510 lbs.

CHEVROLET SILVERADO 3500 HD/GMC SIERRA 3500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

146.3 in./60 in.



Body Length

8 ft., 9 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

7,571 lbs.

2WD/4WD DRW

WB/Cab to Axle

170.8 in./84.5 in.



Body Length

10 ft., 11 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

7,454 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

176.8 in./60 in.



Body Length

8 ft., 9 ft.



Front Maximum GAWR*

6,000 lbs.



Maximum GVWR*

14,000 lbs.



Maximum Payload*

7,040 lbs.

CHEVROLET SILVERADO 4500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

7,000 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,993 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,920 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,824 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.



Body Length

12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,779 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.



Body Length

14 ft., 16 ft., 18 ft., 20 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,667 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.



Body Length

16 ft., 18 ft., 20 ft., 22 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,580 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.



Body Length

18 ft., 20 ft., 22 ft., 24 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,601 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,249 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,135 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

16,500 lbs.



Maximum Payload*

8,991 lbs.

CHEVROLET SILVERADO 5500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

7,000 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,933 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,860 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,764 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.



Body Length

12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,719 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.



Body Length

14 ft., 16 ft., 18 ft., 20 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,617 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.



Body Length

16 ft., 18 ft., 20 ft., 22 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,520 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.



Body Length

18 ft., 20 ft., 22 ft., 24 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,541 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

11,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

7,500 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

10,938 lbs.

CHEVROLET SILVERADO 6500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,940 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,867 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,743 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.



Body Length

12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,698 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.



Body Length

14 ft., 16 ft., 18 ft., 20 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,596 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.



Body Length

16 ft., 18 ft., 20 ft., 22 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,499 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.



Body Length

18 ft., 20 ft., 22 ft., 24 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,520 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.



Body Length

8 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.



Body Length

8 ft., 10 ft., 12 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.



Body Length

10 ft., 12 ft., 14 ft., 16 ft.



Front Maximum GAWR*

8,000 lbs.



Maximum GVWR*

23,500 lbs.



Maximum Payload*

15,938 lbs.

CHEVROLET LCF 3500 GAS

REGULAR CAB

2WD DRW

WB/Cab to Axle

109 in./86.5 in.



Body Length

10 ft., 11 ft., 12 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,978 lbs.

2WD DRW

WB/Cab to Axle

132.5 in./110 in.



Body Length

14 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,885 lbs.

2WD DRW

WB/Cab to Axle

150 in./127.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,841 lbs.

2WD DRW

WB/Cab to Axle

176 in./153.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,782 lbs.

CREW CAB

2WD DRW

WB/Cab to Axle

150 in./88.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,308 lbs.

2WD DRW

WB/Cab to Axle

176 in./114.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

12,000 lbs.



Maximum Payload*

6,246 lbs.

CHEVROLET LCF 4500 HD DIESEL

REGULAR CAB

2WD DRW

WB/Cab to Axle

109 in./86.5 in.



Body Length

10 ft., 11 ft., 12 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

8,536 lbs.

2WD DRW

WB/Cab to Axle

132.5 in./110 in.



Body Length

14 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

8,447 lbs.

2WD DRW

WB/Cab to Axle

150 in./127.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

8,405 lbs.

2WD DRW

WB/Cab to Axle

176 in./153.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

8,350 lbs.

CREW CAB

2WD DRW

WB/Cab to Axle

150 in./88.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

7,832 lbs.

2WD DRW

WB/Cab to Axle

176 in./114.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

14,500 lbs.



Maximum Payload*

7,766 lbs.

CHEVROLET LCF 5500 HD DIESEL

REGULAR CAB

2WD DRW

WB/Cab to Axle

109 in./86.5 in.



Body Length

10 ft., 11 ft., 12 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

11,461 lbs.

2WD DRW

WB/Cab to Axle

132.5 in./110 in.



Body Length

14 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

11,368 lbs.

2WD DRW

WB/Cab to Axle

150 in./127.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

11,322 lbs.

2WD DRW

WB/Cab to Axle

176 in./153.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

11,264 lbs.

2WD DRW

WB/Cab to Axle

200 in./177.5 in.



Body Length

22 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

10,939 lbs.

CREW CAB

2WD DRW

WB/Cab to Axle

150 in./88.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

10,748 lbs.

2WD DRW

WB/Cab to Axle

176 in./114.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

6,830 lbs.



Maximum GVWR*

17,950 lbs.



Maximum Payload*

10,680 lbs.

CHEVROLET LCF 5500 XD DIESEL

REGULAR CAB

2WD DRW

WB/Cab to Axle

109 in./86.5 in.



Body Length

10 ft., 11 ft., 12 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,875 lbs.

2WD DRW

WB/Cab to Axle

132.5 in./110 in.



Body Length

14 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,779 lbs.

2WD DRW

WB/Cab to Axle

150 in./127.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,735 lbs.

2WD DRW

WB/Cab to Axle

176 in./153.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,676 lbs.

2WD DRW

WB/Cab to Axle

200 in./177.5 in.



Body Length

22 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,314 lbs.

2WD DRW

WB/Cab to Axle

212.5 in./189.5 in.



Body Length

24 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

12,294 lbs.

CREW CAB

2WD DRW

WB/Cab to Axle

150 in./88.5 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

10,748 lbs.

2WD DRW

WB/Cab to Axle

176 in./114.5 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

7,275 lbs.



Maximum GVWR*

19,500 lbs.



Maximum Payload*

10,680 lbs.

CHEVROLET LCF 6500 XD DIESEL

REGULAR CAB

2WD DRW

WB/Cab to Axle

152 in./127 in.



Body Length

10 ft., 11 ft., 12 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

15,690 lbs.

2WD DRW

WB/Cab to Axle

170 in./145 in.



Body Length

14 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

15,563 lbs.

2WD DRW

WB/Cab to Axle

188 in./163 in.



Body Length

16 ft., 17 ft., 18 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

15,061 lbs.

2WD DRW

WB/Cab to Axle

200 in./175 in.



Body Length

18 ft., 19 ft., 20 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

14,987 lbs.

2WD DRW

WB/Cab to Axle

212 in./187 in.



Body Length

24 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

14,894 lbs.

2WD DRW

WB/Cab to Axle

224 in./199 in.



Body Length

26 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

14,809 lbs.

2WD DRW

WB/Cab to Axle

236 in./211 in.



Body Length

28 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

14,725 lbs.

2WD DRW

WB/Cab to Axle

248 in./223 in.



Body Length

30 ft.



Front Maximum GAWR*

12,000 lbs.



Maximum GVWR*

25,950 lbs.



Maximum Payload*

14,641 lbs.

NEXT STEPS

Business Elite Dealers are experienced with commercial needs and have fleet-ready inventory on hand.

LOCATE A BUSINESS ELITE DEALER

Here you can find technical information for upfits including the latest specifications, guidelines and best practices.

GMUPFITTER.COM

Get an experienced upfitter with a proven track record of working with General Motors parts and vehicles.

FIND AN UPFITTER

Vehicles shown throughout with equipment from an independent supplier and are not covered by the GM New Vehicle Warranty. GM is not responsible for the safety or quality of independent supplier alterations.

Questions?
Get in touch.

Transformative change doesn’t happen overnight. Let us start you on the journey with the right people, asking the right questions.

Questions? Get in touch.

Transformative change doesn’t happen overnight. Let us start you on the journey with the right people, asking the right questions.
