2023 Chevrolet Low Cab Forward (LCF) Truck Exterior Front Side View

Upfit Disclaimer*

2023 CHEVROLET

LOW CAB FORWARD

BEST TOOL FOR YOUR TRADE

With lots of choices, there’s a Low Cab Forward (LCF) truck that’s right for your workload and needs. The extensive Chevrolet LCF lineup features tight turning radii from 31.5’ to 66.0’* depending on wheelbase choice, easy-to-maneuver cab-over design, as well as substantial space and upfit* options, making these trucks a valuable asset to those who put a premium on hard work. Plus, the available gas and diesel engines provide you added flexibility to best suit your business’s needs.

OUR LOW CAB FORWARD LINEUP

2023 Chevrolet LCF Truck Lineup from GM Fleet

2023 3500 AND 4500 GAS

Available in Regular Cab and Crew Cab configurations with GVWRs* of 12,000 and 14,500 lbs. The 3500 and 4500 bring exceptional strength to your worksite, with 350 horsepower and 425 lb.-ft. of torque.

2023 4500 HD/XD DIESEL

Available in Regular Cab and Crew Cab configurations. Features two work-ready GVWRs* of 14,500 and 16,000 lbs. The 4500 HD and 4500 XD are ready to take on the tough tasks with 215 horsepower and 452 lb.-ft. of torque.

2023 5500 HD/XD DIESEL

Available in Regular Cab and Crew Cab configurations. Offers even more impressive GVWRs* of 17,950 and 19,500 lbs. The 5500 HD and 5500 XD produce 215 horsepower and 452 lb.-ft. of torque to get the job done.
FEATURES & SPECS
2023 Chevrolet 6500XD LCF Truck Front Side View

THE 6500 XD – THE POWER TO GET THE JOB DONE

The Low Cab Forward 6500 XD turns the biggest tasks into light work with a 25,950-lb. GVWR*. A 6.7L Cummins® turbocharged diesel mated to an Allison® 2550 RDS 6-speed automatic transmission creates a smooth and reliable powertrain that delivers 660 lb.-ft. of torque. Plus, a choice of eight wheelbase configurations ranging from 152" to 248," and body lengths up to 30’, give you flexibility to adapt to the work your fleet faces.
2023 Chevrolet 7500XD LCF Truck Front Side View

THE NEW 7500 XD – OUR HARDEST-WORKING LCF

The Low Cab Forward 7500 XD is our ultimate LCF and most capable truck. With a powerful new  Cummins® engine, it has a total GVWR* of 33,000 lbs. Mix in a new front end with LED headlamps, standard fuel filter heater, new PIOs as well as the ability to de-rate down to a Class 6 GVWR of 25,950 lbs., and you have a vehicle that really delivers.

LOW CAB FORWARD KEY BENEFITS
View 2023 Chevrolet LCF Cab Over Design from GM Fleet

CAB-OVER DESIGN

  • Optimal visibility for the driver
  • Better maneuverability with similar capability as a conventional chassis cab
  • Easy access to the engine compartment for routine maintenance
2023 Chevrolet LCF Truck Interior Workspace Options

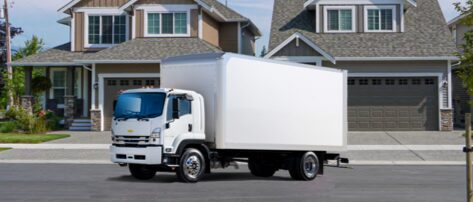

OVERALL LENGTH

  • Generous cargo capacity, ideal for delivering large or bulky cargo
  • Impressive turning radius for agility in navigating urban routes
View 2020 Chevrolet LCF Overall Length Dimensions

INTERIOR WORKSPACE

  • Maximizes use of space to benefit drivers
  • Fold-down tray that doubles as a laptop/work area
  • Convenient storage areas in the dash, door, seatback pockets, overhead shelf and rear organizer tray
DOWNLOAD BROCHURE
View 2020 Commercial Vehicles from GM Fleet

COMMERCIAL VEHICLES

Find a work truck equipped with the exact upfit through our real-time vehicle inventory listings.



Inventory listings are provided through third-party resources to help you locate products that could work for your business. The vehicle listed shows equipment from an independent supplier and are not covered by the GM New Vehicle Warranty. GM is not responsible for the safety or quality of independent supplier alternations.

SEARCH WORK TRUCK INVENTORY

Shown with equipment from independent suppliers, which is not covered by the GM New Vehicle Limited Warranty. GM is not responsible for the safety or quality of independent supplier alterations.
icon Created with Sketch.

CHEVROLET INSIGHT REPORT

Standard on all Diesel LCF models equipped with a data recording module, the Chevrolet Insight Report monitors each vehicle’s vital systems and, upon request, issues a printed or emailed report at each service visit.
DOWNLOAD INSIGHT FLYER

UPFIT CAPABILITY

The Low Cab Forward is available in wheelbases from 109" to 248" and can accommodate a wide range of body applications, ranging from 10' to 30' as well as upfit* options tailored to specific industries.

APPLICATION CHARTS

LCF 3500 GAS

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

Body Length

10, 12, 14, 16, 18, 20 FT.

Drive Type

2WD

Maximum GVWR*

12,000 LBS.

Maximum Payload*

6,796 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

12,000 LBS.

Maximum Payload*

6,095 LBS.

LCF 4500 GAS

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

Body Length

10, 12, 14, 16, 18, 20 FT.

Drive Type

2WD

Maximum GVWR*

14,500 LBS.

Maximum Payload*

8,941 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

14,500 LBS.

Maximum Payload*

8,290 LBS.

LCF 4500 HD DIESEL

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

Body Length

10, 12, 14, 16, 18, 20 FT.

Drive Type

2WD

Maximum GVWR*

14,500 LBS.

Maximum Payload*

8,511 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

14,500 LBS.

Maximum Payload*

7,808 LBS.

LCF 4500 XD DIESEL

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

Body Length

10, 12, 14, 16, 18, 20 FT.

Drive Type

2WD

Maximum GVWR*

16,000 LBS.

Maximum Payload*

9,605 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

16,000 LBS.

Maximum Payload*

8,901 LBS.

LCF 5500 HD DIESEL

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

200/177.5 IN.

Body Length

10, 12, 14, 16, 18, 20, 22 FT.

Drive Type

2WD

Maximum GVWR*

17,950 LBS.

Maximum Payload*

11,463 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

17,950 LBS.

Maximum Payload*

10,750 LBS.

LCF 5500 XD DIESEL

REGULAR & CREW CAB

REGULAR CAB

WB/CA

109/86.5 IN.

132.5/110 IN.

150/127.5 IN.

176/153.5 IN.

200/177.5 IN.

212/189.5 IN.

Body Length

10, 12, 14, 16, 18, 20, 22, 24 FT.

Drive Type

2WD

Maximum GVWR*

19,500 LBS.

Maximum Payload*

12,997 LBS.

CREW CAB

WB/CA

150/88.5 IN.

176/114.5 IN.

Body Length

12, 16 FT.

Drive Type

2WD

Maximum GVWR*

19,500 LBS.

Maximum Payload*

12,284 LBS.

LCF 6500 XD DIESEL

REGULAR CAB

REGULAR CAB

WB/CA

152/127 IN.

170/145 IN.

188/163 IN.

200/175 IN.

212/187 IN.

224/199 IN.

236/211 IN.

248/223 IN.

Body Length

14, 16, 18, 20, 22, 24, 26, 28, 30 FT.

Drive Type

2WD

Maximum GVWR*

25,950 LBS.

Maximum Payload*

16,264 LBS.

LCF 7500 XD DIESEL

REGULAR CAB

REGULAR CAB

WB/CA

152/127 IN.

170/145 IN.

188/163 IN.

200/175 IN.

212/187 IN.

224/199 IN.

236/211 IN.

248/223 IN.

Body Length

14, 16, 18, 20, 22, 24, 26, 28, 30 FT.

Drive Type

2WD

Maximum GVWR*

33,000 LBS.

Maximum Payload*

22,989 LBS.

SAFETY

2019-gmf-shared-refpartial-safety Created with Sketch.

HELPS SAFE DRIVING

 Standard 4-wheel antilock brakes help add stability and control. Wraparound headlamps and separate side marker lights can help enhance nighttime visibility from the front as well as the side.

CONNECTIVITY
2019-gmf-shared-refpartial-appleandroid Created with Sketch.

KEEP COMMUNICATIONS OPEN

Enhance the connectivity of the Low Cab Forward with the Bluetooth®*-enabled radio, featuring Hands-Free Calling.

GAS WARRANTIES

Base Limited Warranty

3 years or 36,000 miles*



Frame Rails and Cross Members Limited Warranty

  • 100% of parts and labor is covered for 36 months or 36,000 miles*
  • After 36 months or 36,000 miles*, 50% of parts and labor is covered for up to 60 months/unlimited miles

Powertrain Limited Warranty

  • 5 years/75,000 miles*
  • Qualifying Fleet Account*: 5 years or 100,000 miles*

Roadside Assistance Program

  • 24-Hour Roadside Assistance Program* is provided with all purchased or leased GM vehicles that are within the Powertrain Limited Warranty.

DIESEL WARRANTIES

Base Limited Warranty

3 years/unlimited miles*



Frame Rails and Cross Members Limited Warranty

  • 100% of parts and labor is covered for 36 months and unlimited miles*
  • After 36 months, 50% of parts and labor is covered for up to 60 months/unlimited miles

Powertrain Limited Warranty

  • 3 years/unlimited miles*

Roadside Assistance Program

  • 24-Hour Roadside Assistance Program* is provided with all purchased or leased GM vehicles that are within the Powertrain Limited Warranty.
