Ambulance, Rescue and Emergency UpFits

UPFIT APPLICATIONS

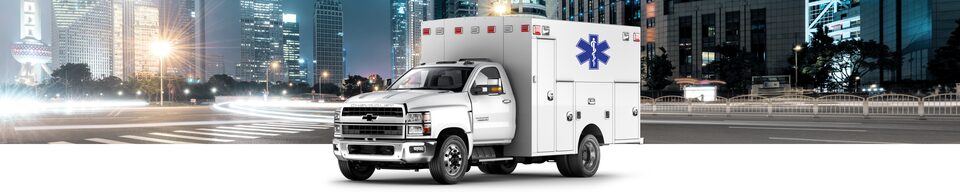

AMBULANCE & RESCUE

General Motors offers a wide variety of platforms that are ready to be upfitted as emergency vehicles. Chevrolet and GMC both offer models that simplify the upfit^* process to help get your organization on the road and providing assistance to people as quickly as possible.

COMPATIBLE MODELS

- Chevrolet Express 3500 Cargo/GMC Savana 3500 Cargo

- Chevrolet Express 3500 Cutaway/GMC Savana 3500 Cutaway

- Chevrolet Express 4500 Cutaway/GMC Savana 4500 Cutaway

- Chevrolet Silverado 3500 HD Chassis Cab/GMC Sierra 3500 HD Chassis Cab

- Chevrolet Silverado 4500 HD Chassis Cab

- Chevrolet Silverado 5500 HD Chassis Cab

- Chevrolet Silverado 6500 HD Chassis Cab

AMBULANCE HERO CARD

VAN AMBULANCE PACKAGES

General Motors cutaway vans equipped with the Ambulance Package come with the following standard features: Our proven Vortec® 6.0L V8 engine, a single 220-amp alternator, an isolated 2nd battery with rundown protection, a 120V power outlet, two 12V auxiliaries, HVAC system with auxiliary rear heat provisions, 4-wheel antilock brakes, and our StabiliTrak® electronic stability control and traction control system.

APPLICATION CHARTS

CHEVROLET EXPRESS 3500 CARGO/GMC SAVANA 3500 CARGO

CARGO

2WD SRW

WB/Cab to Axle

155 in./na

Overall Length

20.3 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

9,600 lbs.

Maximum Payload^*

3,820 lbs.

CHEVROLET EXPRESS 3500 CUTAWAY/GMC SAVANA 3500 CUTAWAY

CUTAWAY

2WD SRW/DRW

WB/Cab to Axle

139 in./80 in.

Cab to end of frame

12.4 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

12,300 lbs.

Maximum Payload^*

7,180 lbs.

2WD SRW/DRW

WB/Cab to Axle

159 in./100 in.

Cab to end of frame

14 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

12,300 lbs.

Maximum Payload^*

7,140 lbs.

CHEVROLET EXPRESS 4500 CUTAWAY/GMC SAVANA 4500 CUTAWAY

CUTAWAY

2WD DRW

WB/Cab to Axle

159 in./100 in.

Cab to end of frame

14 ft.

Front Maximum GAWR^*

4,600 lbs.

Maximum GVWR^*

14,200 lbs.

Maximum Payload^*

8,940 lbs.

TRUCK AMBULANCE PACKAGES

Available in regular cab or crew cab, with two- and four-wheel drive, Chevrolet Silverado and GMC Sierra trucks offer a strong foundation for Ambulance and Emergency Service upfits. They have a wide variety of wheelbases and GVWRs.^*

APPLICATION CHARTS

CHEVROLET SILVERADO 3500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

170.8 in./84.5 in.

Body Length

10 ft., 11 ft.

Front Maximum GAWR^*

6,000 lbs.

Maximum GVWR^*

14,000 lbs.

Maximum Payload^*

7,454 lbs.

CHEVROLET SILVERADO 4500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,000 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,993 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,920 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,824 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,779 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,677 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,580 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,601 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,249 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,135 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

7,991 lbs.

CHEVROLET SILVERADO 5500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,000 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,933 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,860 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,764 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,719 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,617 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,520 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,541 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

10,938 lbs.

CHEVROLET SILVERADO 6500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,940 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,867 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,743 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,698 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,596 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,499 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,520 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

14,938 lbs.

NEXT STEPS

Business Elite Dealers are experienced with commercial needs and have fleet-ready inventory on hand.

LOCATE A BUSINESS ELITE DEALER

Here you can find technical information for upfits including the latest specifications, guidelines and best practices.

GMUPFITTER.COM

Get an experienced upfitter with a proven track record of working with General Motors parts and vehicles.

FIND AN UPFITTER

Vehicles shown throughout with equipment from an independent supplier and are not covered by the GM New Vehicle Warranty. GM is not responsible for the safety or quality of independent supplier alterations.
