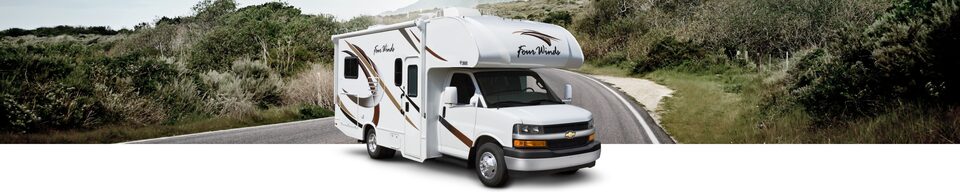

RV Cutaway Upfit Options

UPFIT APPLICATIONS

RV SOLUTIONS

When designing a home built for the road, GM Envolve has Chevrolet and GMC options for a durable platform with a variety of key features for comfort and reliability.

COMPATIBLE MODELS

- Chevrolet Express 3500 Cutaway

- Chevrolet Express 4500 Cutaway

- Chevrolet Silverado 4500 HD Chassis Cab

- Chevrolet Silverado 5500 HD Chassis Cab

- Chevrolet Silverado 6500 HD Chassis Cab

RV HERO CARD

RV VAN PACKAGES

GM Envolve RV Option Package offers a variety of features to create a comfortable RV. Standard features include a proven Vortec® 6.0L V8 engine, 4-wheel antilock disc brakes, an external transmission oil cooler, as well as a StabiliTrak® electronic stability control and traction control systems. Available features include a 57-gallon capacity fuel tank (approx.) and an isolated second battery with rundown protection. Plus, each vehicle comes with a Driver Information Center, that can display fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders.

APPLICATION CHARTS

CHEVROLET EXPRESS 3500 CUTAWAY

CUTAWAY

2WD SRW/DRW

WB/Cab to Axle

139 in./80 in.

Cab to end of frame

12.4 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

12,300 lbs.

Maximum Payload^*

7,180 lbs.

2WD SRW/DRW

WB/Cab to Axle

159 in./100 in.

Cab to end of frame

14 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

12,300 lbs.

Maximum Payload^*

7,140 lbs.

2WD SRW/DRW

WB/Cab to Axle

177 in./118 in.

Cab to end of frame

15.5 ft.

Front Maximum GAWR^*

4,300 lbs.

Maximum GVWR^*

12,300 lbs.

Maximum Payload^*

7,080 lbs.

CHEVROLET EXPRESS 4500 CUTAWAY

CUTAWAY

2WD DRW

WB/Cab to Axle

159 in./100 in.

Cab to end of frame

14 ft.

Front Maximum GAWR^*

4,600 lbs.

Maximum GVWR^*

14,200 lbs.

Maximum Payload^*

8,940 lbs.

RV TRUCK PACKAGES

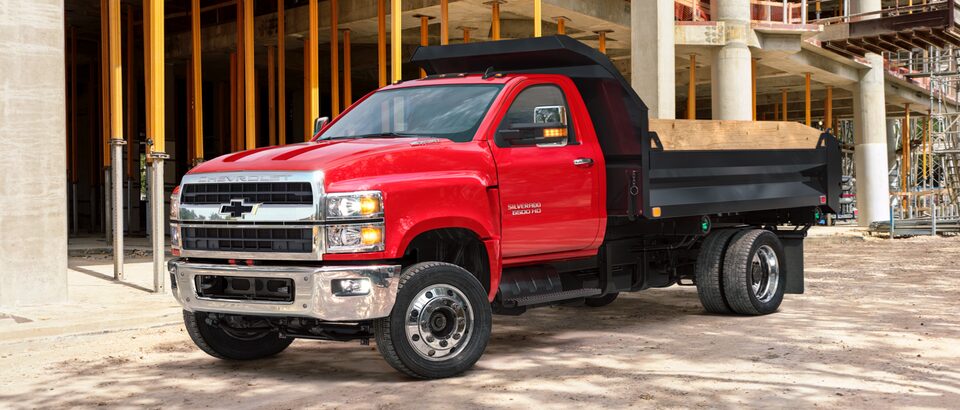

The Silverado Medium Duty Chassis Cab makes it easy to upfit^* to a recreational vehicle with factory available air suspension, multiple fuel tank configurations that can provide up to a 65-gallon capacity (approx.) and a robust single-piece frame rail for enhanced durability.

APPLICATION CHARTS

CHEVROLET SILVERADO 4500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,000 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,993 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,920 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,824 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,779 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,677 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,580 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,601 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,249 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

8,135 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

16,500 lbs.

Maximum Payload^*

7,991 lbs.

CHEVROLET SILVERADO 5500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,000 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,933 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,860 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,764 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,719 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,617 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,520 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,541 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

11,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

7,500 lbs.

Maximum GVWR^*

19,500 lbs.

Maximum Payload^*

10,938 lbs.

CHEVROLET SILVERADO 6500 HD CHASSIS CAB

REGULAR CAB

2WD/4WD DRW

WB/Cab to Axle

141 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,940 lbs.

2WD/4WD DRW

WB/Cab to Axle

165 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,867 lbs.

2WD/4WD DRW

WB/Cab to Axle

189 in./108 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,743 lbs.

2WD/4WD DRW

WB/Cab to Axle

201 in./120 in.

Body Length

12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,698 lbs.

2WD/4WD DRW

WB/Cab to Axle

219 in./138 in.

Body Length

14 ft., 16 ft., 18 ft., 20 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,596 lbs.

2WD/4WD DRW

WB/Cab to Axle

231 in./150 in.

Body Length

16 ft., 18 ft., 20 ft., 22 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,499 lbs.

2WD/4WD DRW

WB/Cab to Axle

243 in./162 in.

Body Length

18 ft., 20 ft., 22 ft., 24 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,520 lbs.

CREW CAB

2WD/4WD DRW

WB/Cab to Axle

175 in./60 in.

Body Length

8 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,196 lbs.

2WD/4WD DRW

WB/Cab to Axle

199 in./84 in.

Body Length

8 ft., 10 ft., 12 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

15,082 lbs.

2WD/4WD DRW

WB/Cab to Axle

235 in./120 in.

Body Length

10 ft., 12 ft., 14 ft., 16 ft.

Front Maximum GAWR^*

8,000 lbs.

Maximum GVWR^*

23,500 lbs.

Maximum Payload^*

14,938 lbs.

NEXT STEPS

Business Elite Dealers are experienced with commercial needs and have fleet-ready inventory on hand.

LOCATE A BUSINESS ELITE DEALER

Here you can see our complete line of upfit-ready chassis and cutaway vehicles.

VIEW ALL CHASSIS AND CUTAWAYS

Get an experienced upfitter with a proven track record of working with General Motors parts and vehicles.

FIND AN UPFITTER

Vehicles shown throughout with equipment from an independent supplier and are not covered by the GM New Vehicle Warranty. GM is not responsible for the safety or quality of independent supplier alterations.
